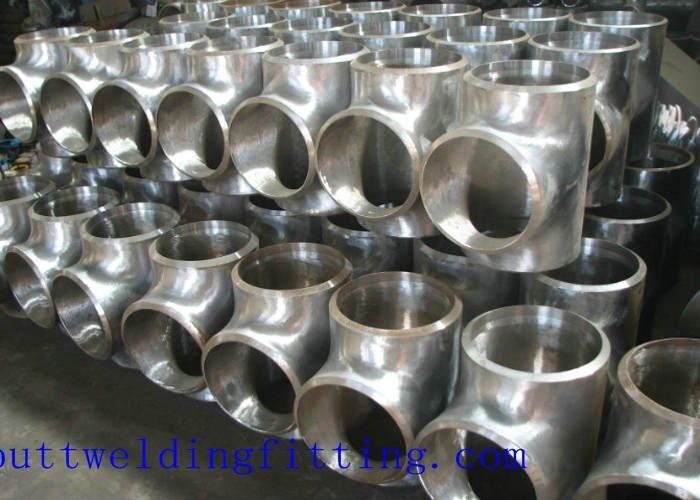

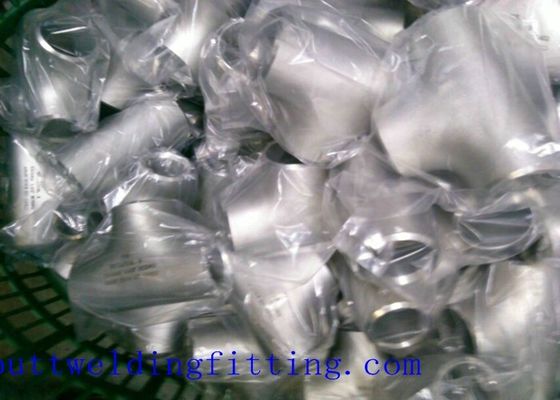

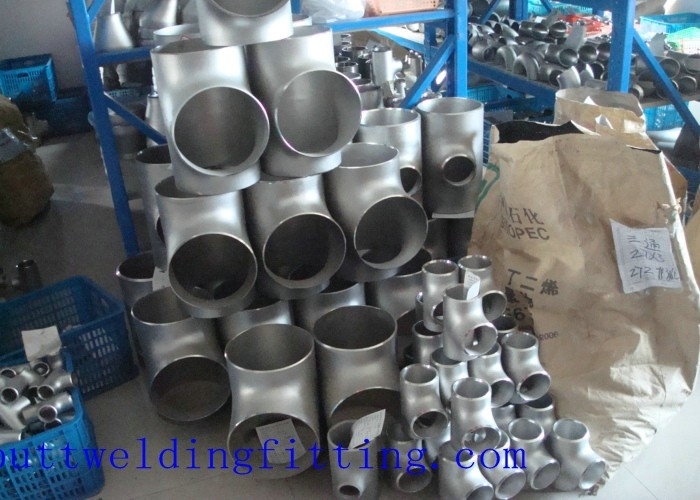

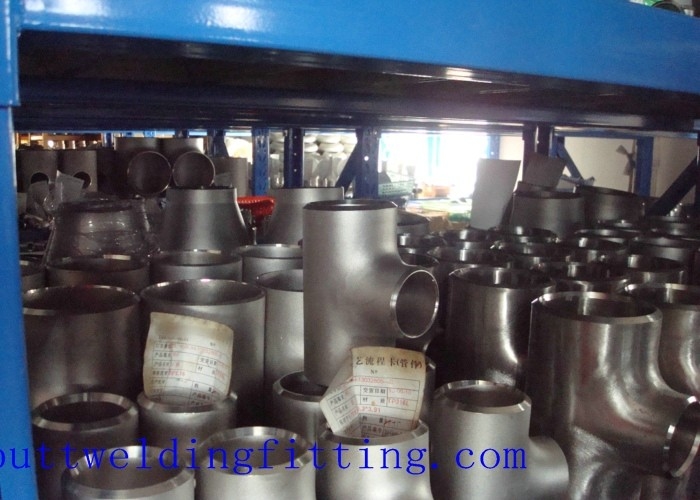

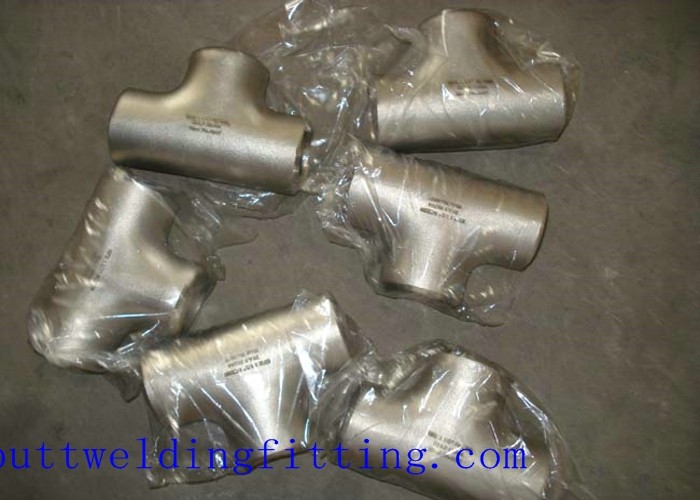

WP304 316 304 316L BW लाल स्टेनलेस स्टील टी निकल मिश्र धातु इस्पात WP347

सामान्य पाइप का आकार

बेवेल के बाहर व्यास

केंद्र से अंत तक

डीएन

डी 1

डी 2

सी

एम

श्रृंखला ए

श्रृंखला बी

श्रृंखला ए

श्रृंखला बी

20 × 20 × 15

26.9

25

21.3

18

29

29

25 × 25 × 20

33.7

32

26.9

25

38

38

25 × 25 × 15

33.7

32

21.3

18

38

38

32 × 32 × 25

42.4

38

33.7

32

48

48

32 × 32 × 20

42.4

38

26.9

25

48

48

32 × 32 × 15

42.4

38

21.3

18

48

48

40 × 40 × 32

48.3

45

42.4

38

57

57

40 × 40 × 25

48.3

45

33.7

32

57

57

40 × 40 × 20

48.3

45

26.9

25

57

57

40 × 40 × 15

48.3

45

21.3

18

57

57

50 × 50 × 40

60.3

57

48.3

45

64

60

50 × 50 × 32

60.3

57

42.4

38

64

57

50 × 50 × 25

60.3

57

33.7

32

64

51

50 × 50 × 20

60.3

57

26.9

25

64

44

65 × 65 × 50

76.1 (73)

76

60.3

57

76

70

65 × 65 × 40

76.1 (73)

76

48.3

45

76

67

65 × 65 × 32

76.1 (73)

76

42.4

38

76

64

65 × 65 × 25

76.1 (73)

76

33.7

32

76

57

80 × 80 × 65

88.9

89

76.1 (73)

76

86

83

80 × 80 × 50

88.9

89

60.3

57

86

76

80 × 80 × 40

88.9

89

48.3

45

86

73

80 × 80 × 32

88.9

89

42.4

38

86

70

90 × 90 × 80

101.6

-

88.9

-

95

92

90 × 90 × 65

101.6

-

76.1 (73)

-

95

89

90 × 90 × 50

101.6

-

60.3

-

95

83

90 × 90 × 40

101.6

-

48.3

-

95

79

100 × 100 × 90

114.3

-

101.6

-

105

102

100 × 100 × 80

114.3

108

88.9

89

105

98

100 × 100 × 65

114.3

108

76.1 (73)

76

105

95

100 × 100 × 50

114.3

108

60.3

57

105

89

100 × 100 × 40

114.3

108

48.3

45

105

86

125 × 125 × 100

139.7

133

114.3

108

124

117

125 × 125 × 90

139.7

-

101.6

-

124

114

125 × 125 × 80

139.7

133

88.9

89

124

111

125 × 125 × 65

139.7

133

76.1 (73)

76

124

108

125 × 125 × 50

139.7

133

60.3

57

124

105

150 × 150 × 125

168.3

159

139.7

133

143

137

150 × 150 × 100

168.3

159

114.3

108

143

130

150 × 150 × 90

168.3

-

101.6

-

143

127

150 × 150 × 80

168.3

159

88.9

89

143

124

150 × 150 × 65

168.3

159

76.1 (73)

76

143

121

200 × 200 × 150

219.1

219

168.3

159

178

168

200 × 200 × 125

219.1

219

139.7

133

178

162

200 × 200 × 100

219.1

219

114.3

108

178

156

200 × 200 × 90

219.1

-

101.6

-

178

152

250 × 250 × 200

273

273

219.1

219

216

203

250 × 250 × 150

273

273

168.3

159

216

194

250 × 250 × 125

273

273

139.1

133

216

191

250 × 250 × 100

273

273

114.3

108

216

184

300 × 300 × 250

323.9

325

273

273

254

241

300 × 300 × 200

323.9

325

219.1

219

254

229

300 × 300 × 150

323.9

325

168.3

159

254

219

300 × 300 × 125

323.9

325

139.7

133

254

216

350 × 350 × 300

355.6

377

323

325

279

270

350 × 350 × 250

355.6

377

273

273

279

257

350 × 350 × 200

355.6

377

219.1

219

279

248

350 × 350 × 150

255.6

377

168.3

159

279

238

400 × 400 × 350

406.4

426

355.6

377

305

305

400 × 400 × 300

406.4

426

323.9

325

305

295

400 × 400 × 250

406.4

426

273

273

305

283

400 × 400 × 200

406.4

426

219.1

219

305

273

400 × 400 × 150

406.4

426

168.3

159

305

264

450 × 450 × 400

457.2

478

406.4

426

343

330

450 × 450 × 350

457.2

478

355.6

377

343

330

450 × 450 × 300

457.2

478

323.9

325

343

321

450 × 450 × 250

457.2

478

273

273

343

308

450 × 450 × 200

457.2

478

219.1

219

343

298

500 × 500 × 450

508

529

457.2

478

381

368

500 × 500 × 400

508

529

406.4

426

381

356

500 × 500 × 350

508

529

355.6

377

381

356

500 × 500 × 300

508

529

323.9

325

381

346

500 × 500 × 250

508

529

273

273

381

333

500 × 500 × 200

508

529

219.1

219

381

324
