Stainless Steel 304/316L Butt Welding Concentric Reducer ASME B16.9 Class 150 for Piping Systems

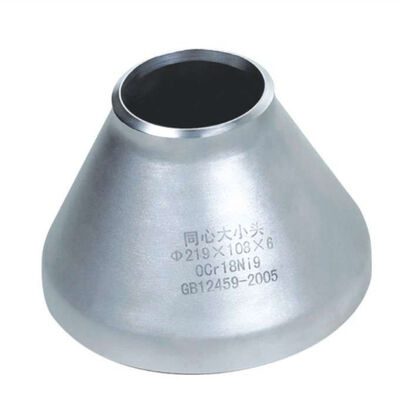

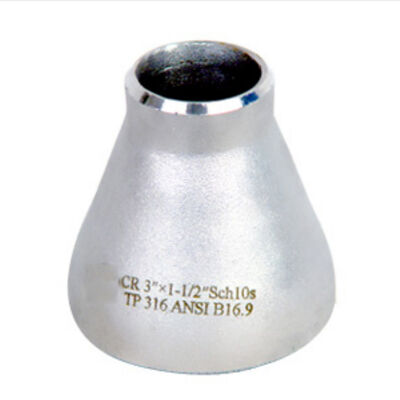

  • Stainless Steel 304/316L Butt Welding Concentric Reducer ASME B16.9 Class 150 for Piping Systems
  • Stainless Steel 304/316L Butt Welding Concentric Reducer ASME B16.9 Class 150 for Piping Systems
  • Stainless Steel 304/316L Butt Welding Concentric Reducer ASME B16.9 Class 150 for Piping Systems
  • Stainless Steel 304/316L Butt Welding Concentric Reducer ASME B16.9 Class 150 for Piping Systems
  • Stainless Steel 304/316L Butt Welding Concentric Reducer ASME B16.9 Class 150 for Piping Systems
उत्पत्ति के प्लेस शंघाई, चीन
ब्रांड नाम TOBO
प्रमाणन ISO/TUV/SGS
मॉडल संख्या स्टेनलेस स्टील रेड्यूसर
न्यूनतम आदेश मात्रा 1 पीसी
मूल्य बातचीत योग्य
पैकेजिंग विवरण मानक शिपिंग पैकेज
प्रसव के समय 15-30 कार्यदिवस
भुगतान शर्तें टी/टी, वेस्टर्न यूनियन
आपूर्ति की क्षमता 10 टन / माह
उत्पाद विवरण
प्रोडक्ट का नाम स्टेनलेस स्टील 304/316एल बट वेल्डिंग कंसेंट्रिक रेड्यूसर एएसएमई बी16.9 क्लास 150 मुख्य मानक एएसटीएम, एएनएसआई, डीआईएन, गोस्ट, बीएस, जीबी
उत्पाद का प्रकार बट वेल्ड रिड्यूसर उद्गम देश चीन
घेरे के बाहर 1/2 पैकेट लकड़ी का केस
दबाव वर्ग 3000 लंबाई 6 मीटर या अनुकूलित
आवेदन द्रव प्रवाह के लिए पाइपिंग सिस्टम अधिकतम सतत संचालन वोल्टेज (यूसी) निर्बाध
प्रमाणपत्र आईएसओ 9001:2015, पीईडी 2014/68/ईयू प्रकार Reducer थोक बिक्री के लिए फ्लैंज
आकार-श्रेणी 1/2 इंच से 48 इंच आकार गोल
समाप्त होता है सादा अंत, बेवेल्ड अंत, थ्रेडेड अंत तकनीक ढलाई
प्रमुखता देना

Stainless Steel 304/316L Butt Welding Concentric Reducer

,

ASME B16.9 Class 150 Butt Welding Concentric Reducer

,

Concentric Reducer ASME B16.9
एक संदेश छोड़ें
उत्पाद विवरण

Stainless Steel 304/316L Butt Welding Concentric Reducer ASME B16.9 Class 150

1. Product Description



Stainless steel reducers are strictly classified into two types based on centerline alignment. Incorrect selection directly impacts system safety:

  • Concentric Reducer (CR): Both ends share the same centerline with symmetrical diameter reduction. Suitable for vertical risers, pump discharge vertical sections, or gas transmission lines, where fluid transitions evenly along the center. Not recommended for horizontal liquid lines due to potential bottom pooling.

  • Eccentric Reducer (ER): Centerlines are parallel but offset, with one straight side (flat-bottom or flat-top installation). For horizontal liquid pipelines, flat-bottom installation (straight side down) is mandatory to prevent liquid accumulation and crevice corrosion. For horizontal gas pipelines, flat-top installation (straight side up) is required to prevent condensate pooling. This is the most critical engineering principle in reducer selection.


2. Product Applications



Industry Typical Media Recommended Material
Petrochemical Crude oil, refined products, sour gas 316L / Duplex 2205
Marine/Ocean Seawater, salt spray 904L / Super Duplex 2507
Food & Pharmaceutical Purified water, steam, CIP solutions 304L / 316L (mirror-polished)
Power Generation High-temp steam, feedwater 321H / 347H (stabilized grades)
Semiconductor High-purity gases, UPW 316L EP-grade (electropolished)

​3.Product Advantages

  • Solution Annealing: All forged/stamped products undergo solution annealing (1040～1120℃) followed by rapid water quenching, ensuring intergranular corrosion resistance and eliminating cold-work stresses.

  • Full-Loop Inspection Chain: Raw material verification → dimensional check → forming temperature monitoring → ultrasonic wall-thickness verification → bevel angle inspection → surface roughness sampling → hydrostatic/pneumatic testing.

  • NDT Coverage: 100% dye penetrant (PT) or magnetic particle (MT) inspection on weld ends; radiographic testing (RT) available upon request for pressure-retaining walls.

  • Full Traceability: Each fitting is stamped with heat number, size, and standard. Material test certificates are provided with each shipment, ensuring full lifecycle traceability.

​

Stainless Steel 304/316L Butt Welding Concentric Reducer ASME B16.9 Class 150 for Piping Systems 0

4.Key Product Parameters


Ordering Item Technical Details
Product Name & Type Must specify "Concentric" or "Eccentric"; for Eccentric, indicate "Flat-Bottom" or "Flat-Top"
Material Grade + Heat No. Example: 316L / Heat No. 2203-XXX (with MTC attached)
Size (Large End × Small End) Example: DN200×DN100 (or 8″×4″)
Wall Thickness Schedule SCH40S / SCH80S, etc. (large and small ends can be specified separately)
Applicable Standard ASME B16.9 / GB/T 12459, etc. (must state edition/year)
End Connection Type Butt Weld (BW) / Socket Weld (SW) / Threaded (specify thread standard)
Surface Finish Requirement Pickled & passivated / Mechanically polished (Ra≤0.8μm) / Mirror polished (Ra≤0.4μm) / Electropolished
NDT Requirements PT / MT / RT / UT (specify sampling rate or 100%)
Packaging Method Wooden crates / Pallets / Steel banding, with plastic end caps on both ends
Marking Requirements Stamped (Material + Size + Standard + Heat No.) or laser-engraved; stainless steel tags attached
Accompanying Documents Material Test Certificate (EN 10204 3.1 or 3.2), Dimensional Inspection Report, Heat Treatment Report




FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
